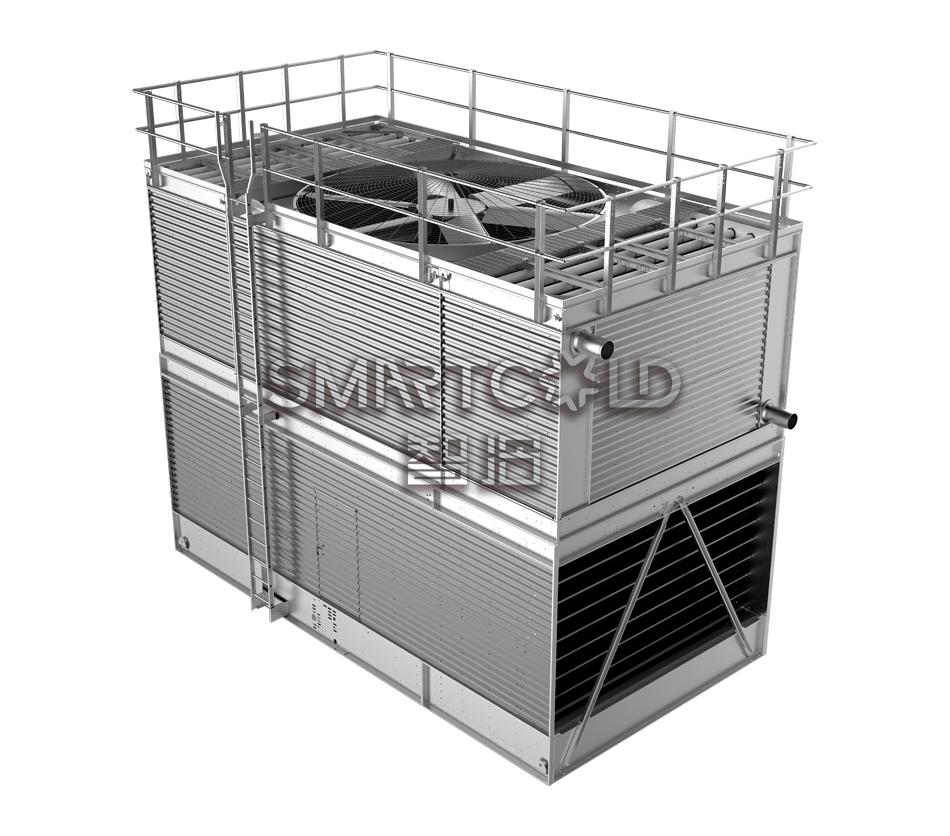

ZLV Evaporative Condenser
- SMARTCOLD
- DALIAN, CHINA
- 45 DAYS
- 1 SET PER WEEK
Widely used in refrigeration, meat slaughtering, dairy and beverage plants, fresh and processed the fruits and vegetables, frozen food, seafood refrigerated and other fields.

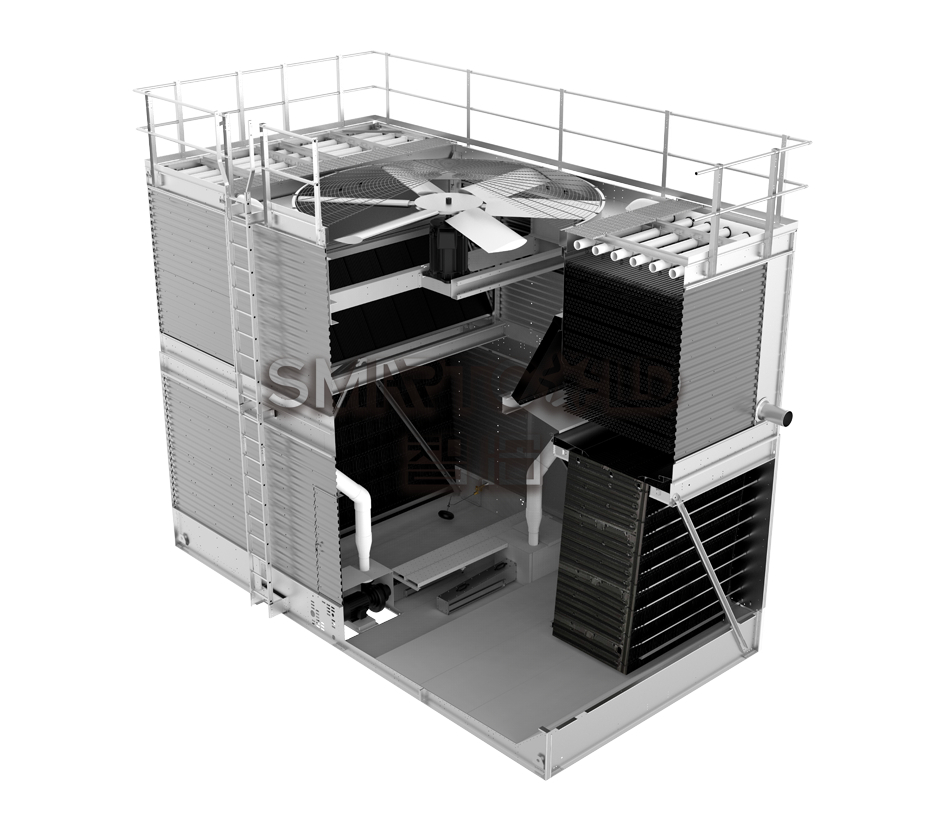

ZLV EVAPORATIVE CONDENSER RELIABLE PERFORMANCE
*Innovative combination of two proven heat transfer designs.
Efficient year-round Evaporative Condensing
*Induced-draft fans are mounted in the warm airstream that above the wet areas.
Low Scaling Tendency
*Low scaling tendency reduces maintenance requirements and sustains peak performance between service intervals.
Extended Service Intervals
*Adopt non-clog, wide-spaced air inlet louvers and accessible large-orifice water distribution system.
Spacious plenum
*Easy maintenance of fan drive system, heat transfer oil and cold water basin.
Fewer coil connections, reduced refrigerant charge, and low unit weights
*Minimize installation costs.
Evaporative Condenser Technology Parameter Table
| 型号 ZLV Model Number | 标准排热量 kW Base Heat Rejection | 重量（kg） Approx. Weight | 风量 m3/s Airflow Rate | 风扇电机 kW Fan Motor | 水流量 L/S Spray Flowrate | 水泵功率 kW Pump Motor | 氨充灌量 kg Ammonia Operating Charge | 远置蓄水槽 Remoto Sump | |||
| 运输 Shipping | 运行 Operating | 最重部件 Heaviest Section | 排水孔尺寸 Drain Size | 运行重量 Approx. Oper.Wt. | |||||||
| ZLV-74 | 319 | 2350 | 3400 | 1440 | 12.5 | 4 | 12 | 1. 1 | 30 | 150 | 3268 |
| ZLV-80 | 345 | 2370 | 3410 | 1450 | 14. 3 | 5. 5 | 12 | 1. 1 | 30 | 150 | 3282 |
| ZLV-84 | 362 | 2370 | 3420 | 1450 | 15. 7 | 7.5 | 12 | 1. 1 | 30 | 150 | 3286 |
| ZLV-89 | 383 | 2520 | 3590 | 1600 | 13. 9 | 5. 5 | 12 | 1. 1 | 38 | 150 | 3459 |
| ZLV-93 | 401 | 2530 | 3600 | 1610 | 15. 3 | 7.5 | 12 | 1. 1 | 38 | 150 | 3464 |
| ZLV-117 | 505 | 3370 | 4960 | 2140 | 20. 0 | 5. 5 | 18 | 2. 2 | 46 | 150 | 4827 |
| ZLV-123 | 530 | 3390 | 4980 | 2140 | 22 | 7. 5 | 18 | 2. 2 | 46 | 150 | 4832 |
| ZLV-131 | 564 | 3410 | 5000 | 2160 | 25. 1 | 11 | 18 | 2. 2 | 46 | 150 | 4855 |
| ZLV-137 | 589 | 3610 | 5240 | 2360 | 21.4 | 7. 5 | 18 | 2. 2 | 57 | 150 | 5086 |
| ZLV-147 | 632 | 3640 | 5260 | 2390 | 24. 5 | 11 | 18 | 2.2 | 57 | 150 | 5109 |
| ZLV-153 | 661 | 4150 | 6290 | 2590 | 25. 6 | 7. 5 | 32 | 2. 2 | 61 | 200 | 6032 |
| ZLV-164 | 706 | 4180 | 6310 | 2610 | 29. 2 | 11 | 32 | 2. 2 | 61 | 200 | 6059 |
| ZLV-173 | 744 | 4190 | 6320 | 2620 | 32. 1 | 15 | 32 | 2. 2 | 61 | 200 | 6064 |
| ZLV-184 | 795 | 4480 | 6650 | 2910 | 28. 6 | 11 | 32 | 2. 2 | 76 | 200 | 6400 |
| ZLV-193 | 832 | 4490 | 6660 | 2920 | 31.4 | 15 | 32 | 2. 2 | 76 | 200 | 6409 |
| ZLV-207 | 892 | 4560 | 6970 | 2830 | 38 | 18.5 | 45 | 4. 0 | 69 | 200 | 6718 |
| ZLV-214 | 918 | 4570 | 6980 | 2840 | 40 | 22. 0 | 45 | 4. 0 | 69 | 200 | 6727 |
| ZLV-229 | 987 | 4970 | 7450 | 3240 | 31. 7 | 11 | 45 | 4. 0 | 91 | 200 | 7191 |
| ZLV-241 | 1034 | 4970 | 7450 | 3250 | 34. 9 | 15. 0 | 45 | 4. 0 | 91 | 200 | 7195 |
| ZLV-253 | 1086 | 5000 | 7480 | 3270 | 37. 6 | 18.5 | 45 | 4. 0 | 91 | 200 | 7223 |
| ZLV-258 | 1112 | 5010 | 7490 | 3280 | 39.9 | 22 | 45 | 4. 0 | 91 | 200 | 7232 |
| ZLV-263 | 1133 | 5850 | 8460 | 4120 | 30. 5 | 11 | 45 | 4. 0 | 136 | 200 | 8201 |
| ZLV-269 | 1159 | 5410 | 7950 | 3690 | 33. 9 | 15 | 45 | 4. 0 | 114 | 200 | 7700 |
| ZLV-277 | 1195 | 5870 | 8480 | 4140 | 33. 0 | 15. 0 | 45 | 4. 0 | 136 | 200 | 8221 |
| ZLV-280 | 1202 | 5440 | 7980 | 3710 | 36. 5 | 18.5 | 45 | 4. 0 | 114 | 200 | 7723 |
| ZLV-287 | 1238 | 5890 | 8500 | 4160 | 35.4 | 18.5 | 45 | 4. 0 | 136 | 200 | 8241 |
| ZLV-288 | 1241 | 5450 | 7990 | 3720 | 38.8 | 22 | 45 | 4. 0 | 114 | 200 | 7736 |
| ZLV-296 | 1275 | 5890 | 8500 | 4160 | 38. 1 | 22 | 45 | 4. 0 | 136 | 200 | 8241 |
| ZLV-338 | 1452 | 7070 | 10810 | 4670 | 47. 9 | 11-5. 5 | 54 | 5. 5 | 136 | 200 | 10555 |
| ZLV-354 | 1525 | 7090 | 10820 | 4680 | 52.7 | 15-7.5 | 54 | 5. 5 | 136 | 200 | 10568 |
| ZLV-369 | 1585 | 7140 | 10870 | 4730 | 56. 7 | 18. 5-11 | 54 | 5. 5 | 136 | 200 | 10618 |
| ZLV-379 | 1633 | 7150 | 10880 | 4740 | 60.3 | 22-11. | 54 | 5. 5 | 136 | 200 | 10627 |
| ZLV-387 | 1666 | 8400 | 12320 | 6000 | 46. 8 | 11-5. 5 | 54 | 5. 5 | 201 | 200 | 12065 |
| ZLV-396 | 1702 | 7760 | 11590 | 5350 | 51.2 | 15-7. 5 | 54 | 5. 5 | 170 | 200 | 11132 |
| ZLV-409 | 1756 | 8450 | 12370 | 6050 | 49. 7 | 15-7.5 | 54 | 5. 5 | 201 | 200 | 12115 |
| ZLV-411 | 1771 | 7810 | 11640 | 5400 | 55. 1 | 18. 5-11 | 54 | 5. 5 | 170 | 200 | 11386 |
| ZLV-424 | 1822 | 7820 | 11650 | 5410 | 58. 6 | 22-11. | 54 | 5. 5 | 170 | 200 | 11395 |
| ZLV-428 | 1839 | 8490 | 12410 | 6090 | 53. 9 | 18.5-11 | 54 | 5. 5 | 201 | 200 | 12155 |
| ZLV-435 | 1874 | 8490 | 12410 | 6090 | 57.5 | 22-11 | 54 | 5. 5 | 201 | 200 | 12155 |
Step 1, please tell us what model and quantity you need; Step 2, then we will make a Pl for you to confirm the order details; step 3, when we confirmed everything, can arrange the payment; step 4, finally we deliver the goods within the stipulated time....more
