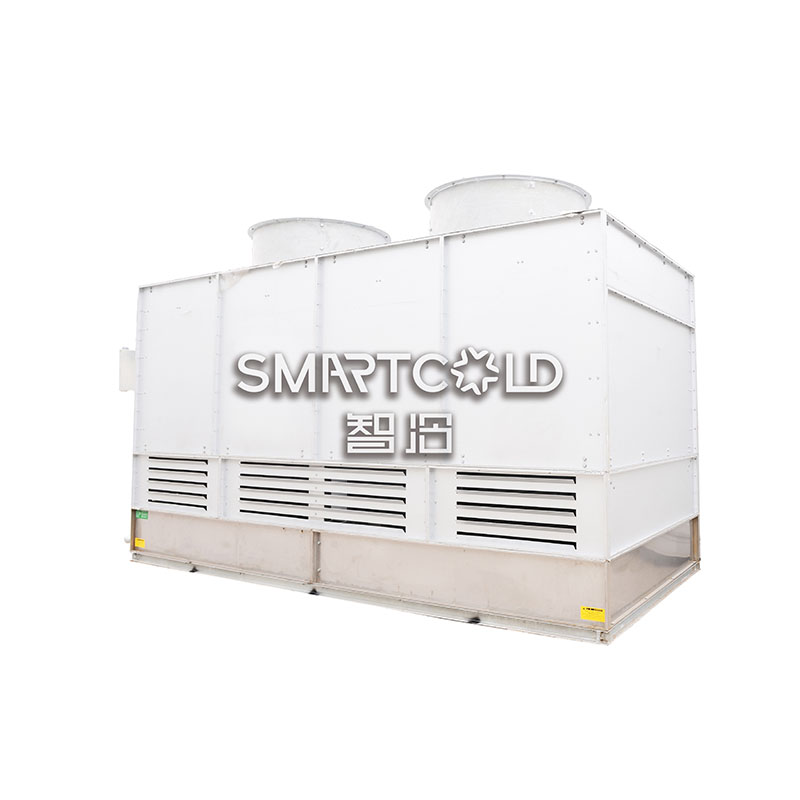

ZLC Evaporative Condenser
ZLC Evaporative Condenser
- SMARTCOLD
- DALIAN, CHINA
- 45 DAYS
- 1 SET PER WEEK
Widely used in refrigeration, meat slaughtering, dairy and beverage plants, fresh and processed the fruits and vegetables, frozen food, seafood refrigerated and other fields.
*Optimized structure design, modular design
*High corrosion resistance design
*Low noise
*Low energy consumption
*Easy to repair and maintain
*Low initial investment
*Low operating costs
ZLC EVAPORATIVE CONDENSER TECHNOLOGY PARAMETER TABLE
Model | Nominal Heat Rejection kW | Airflow Rate m3/h | Fan Motor Kw | Spray Flowrate m3/h | Pump Motor kW | Outer Dimension | Approx Weight Kg | |||
| L (mm) | W(mm) | H (mm) | Shipping | Operating | ||||||
| ZLC-600 | 600 | 40000 | 4 | 114 | 3.7 | 2370 | 2200 | 3050 | 3340 | 4950 |
| ZLC-660 | 660 | 50000 | 4 | 114 | 3.7 | 2460 | 2200 | 3050 | 3420 | 5060 |
| ZLC-700 | 700 | 50000 | 4 | 114 | 3.7 | 2520 | 2200 | 3050 | 3550 | 5200 |
| ZLC-820 | 820 | 60000 | 4 | 114 | 3.7 | 2700 | 2200 | 3050 | 3820 | 5800 |
| ZLC-920 | 920 | 60000 | 2.2*2 | 130 | 3.7 | 3000 | 2200 | 3050 | 4120 | 6100 |
| ZLC-1020 | 1020 | 60000 | 2.2*2 | 130 | 3.7 | 3300 | 2200 | 3050 | 4500 | 6600 |
| ZLC-1070 | 1070 | 80000 | 4.0*2 | 130 | 3.7 | 3470 | 2200 | 3050 | 4800 | 7300 |
| ZLC-1200 | 1200 | 120000 | 4.0*2 | 130 | 3.7 | 3850 | 2200 | 3050 | 5200 | 7790 |
| ZLC-1250 | 1250 | 120000 | 4.0*2 | 130 | 3.7 | 4000 | 2200 | 3050 | 5320 | 7850 |
| ZLC-1350 | 1350 | 120000 | 4.0*2 | 170 | 3.7 | 4140 | 2200 | 3050 | 5560 | 7950 |
| ZLC-1400 | 1400 | 120000 | 4.0*2 | 170 | 3.7 | 4290 | 2200 | 3050 | 5900 | 8150 |
| ZLC-1500 | 1500 | 120000 | 4.0*2 | 170 | 3.7 | 4590 | 2200 | 3050 | 6200 | 8580 |
| ZLC-1650 | 1650 | 120000 | 4.0*2 | 170 | 3.7 | 5040 | 2200 | 3050 | 6400 | 8780 |
| ZLC-1800 | 1800 | 150000 | 5.5*2 | 170 | 3.7 | 5490 | 2200 | 3050 | 7000 | 9280 |
| ZLC-1900 | 1900 | 150000 | 5.5*2 | 170 | 3.7 | 5790 | 2200 | 3050 | 7300 | 9880 |
| ZLC-2000 | 2000 | 150000 | 5.5*2 | 170 | 3.7 | 6090 | 2200 | 3050 | 7800 | 10280 |
| ZLC-2100 | 2100 | 180000 | 7.5*2 | 190 | 5.5 | 4700 | 2200 | 3690 | 8300 | 10500 |
| ZLC-2200 | 2200 | 180000 | 7.5*3 | 190 | 5.5 | 4800 | 2200 | 3690 | 8900 | 10800 |
| ZLC-2300 | 2300 | 180000 | 7.5*4 | 190 | 5.5 | 4900 | 2200 | 3690 | 9300 | 11000 |
| ZLC-2400 | 2400 | 180000 | 7.5*5 | 190 | 5.5 | 5000 | 2200 | 3690 | 10200 | 12800 |
| ZLC-2600 | 2600 | 180000 | 7.5*6 | 190 | 5.5 | 5200 | 2200 | 3690 | 10800 | 13400 |
