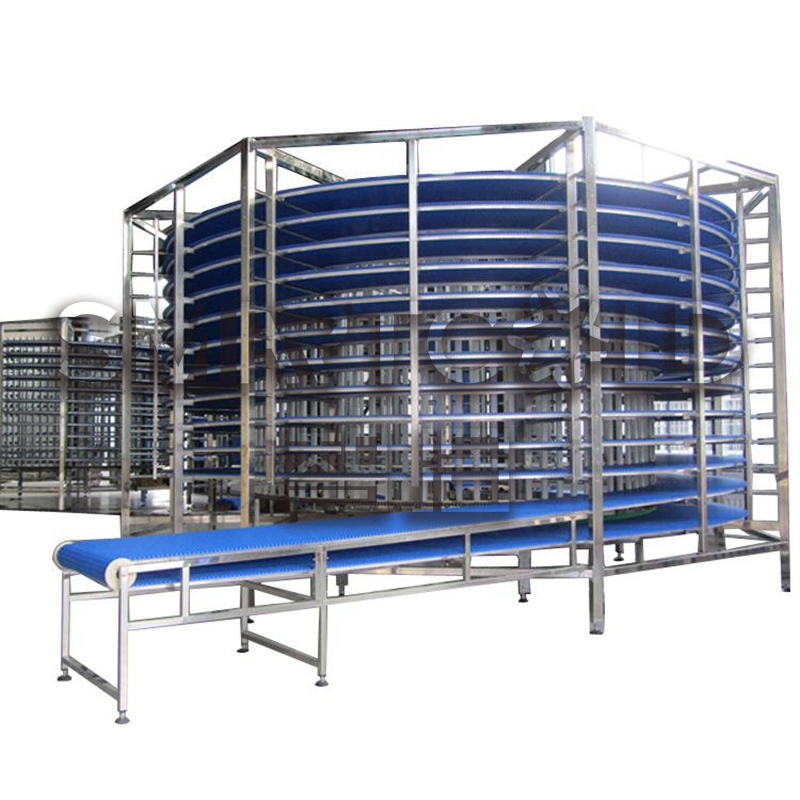

Spiral Freezer

Brand SMARTCOLD
Product origin DALIAN, CHINA
Delivery time 45 DAYS
Supply capacity 1 SET PER WEEK

Spiral freezer is widely used for individual quick freezing and cooling aquatic food, prepared foods, pastry, meat, poultry, dairy, ice cream, etc.

Email

Spiral Freezer Features

*External Driving

To avoid contaminate food from lubrication oil.

*Unique High Strength integrated floor

Stable, durable and smooth surface. The floor is slope and its corner is low angle, which is easy to clean and no dusty corner. Drainage channel setting make water draining smooth and thoroughly

*Evaporator with epoxy fin

Avoiding food contamination from aluminum oxide power.

*Auto washing system

Washing time and air drying time can be set and run as you need.

*Unique airflow system

Even air distribution, high efficiency cooling capability and low weight loss

Spiral Freezer

Item	Freezing	Ref. load	Motor Power	Freezing time	Temp. in	Temp. out	Chamber Temp.	Belt Width	RFNT	Online Dim. (LxWxH)


Model	kg/h	kW	kW	min	℃	℃	℃	mm		m
RSSP-L650x 12-500	500	80	12.5	20-60	50	-18	-35	650	R717	7.8x5.2x3.25
RSSP-L750x 18-1000	1000	170	23					750		8x5.7x4.15
RSSP-L864x27-2000	2000	330	44					864		67x9x5.5
RSSP-L1067x27-3000	3000	490	58					1067		11x8.5x5.5
RSSP-L1067x28-4000	4000	640	78					1067		12x9.5x5.65
Item	Freezing	Ref. load	Motor Power	Freezing time	Temp.in	Temp.out	Chamber Temp.	Belt Width	RFNT	Online Dim. (LxWxH)


Model	kg/h	kW	kW	min	℃	℃	℃	mm		m
RSPT-S450x12-500	500	80	16	20-60	50	-18	-35	450	R717	10.38x4.31x3.25
RSPT-L650x9-750	750	125	18					650		12.83x4.8x2.8
RSPT-L650x12-1000	1000	165	22					650		12.83x4.8x3.25
RSPT-L650x18-1500	1500	240	32					650		14x4.8x4.15
RSPT-L750x15-2000	2000	315	43					750		16.1x6x3.7
RSPT-L750X18-2500	2500	400	46					750		16.1x6x4.15
RSPT-L864x19-3500	3500	540	60					650		13x9x4.45

FAQ

How To Order ?
Step 1, please tell us what model and quantity you need; Step 2, then we will make a Pl for you to confirm the order details; step 3, when we confirmed everything, can arrange the payment; step 4, finally we deliver the goods within the stipulated time....more
