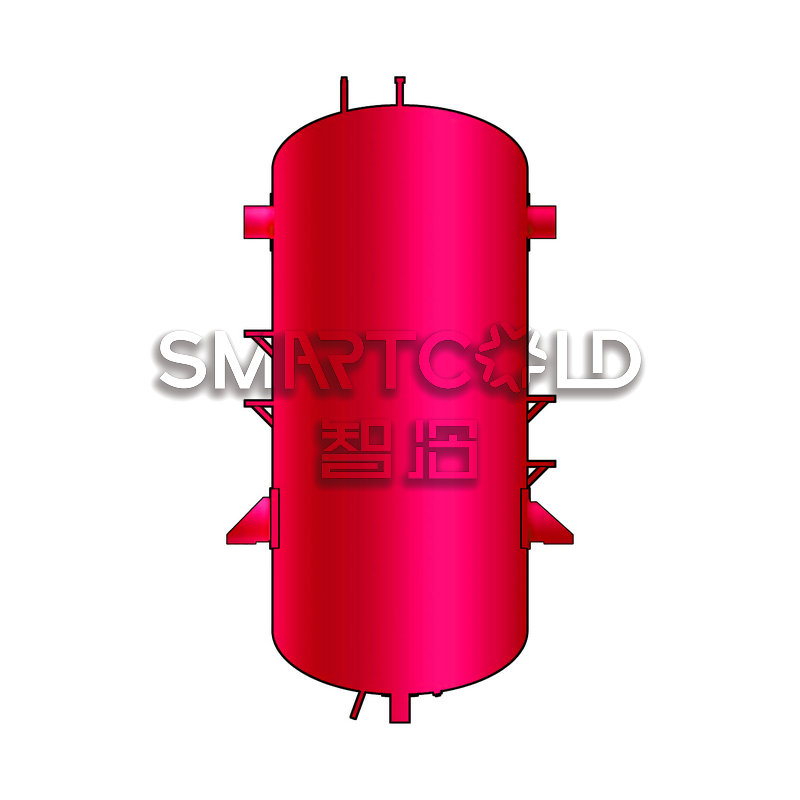

Low Pressure Circulated Vessel
Low Pressure Circulated Vessel
- SMARTCOLD
- DALIAN, CHINA
- 45 DAYS
- 1 SET PER WEEK
Low Pressure Circulated Vessel Volume: 1.7-22.3 m3
Low Pressure Circulated Vessel
* The unit is composed by low pressure circuited vessel, receiver, steel structure, throttle device, liquid level device and ammonia pumps. Pump pressurizes ammonia returned from evaporator as well as ammonia after throttling to evaporator again.
Low Pressure Circulated Vessel data
| 型号 Model | 低压循环桶 Low Pressure C | 设备尺寸 Dimension | 氨泵 Ammonia Pump | 蒸发温度- 15℃时匹配主机的最大冷量 Max. Ref. Cap. in -15℃ | 重量 Weight | ||||||
| 容积 Volume | 缓冲容积 Buffer Volume | 收纳容积 Storage Volume | 长 (L) | 宽 (W) | 高 (H) | 流量 Flow Rate | 扬程 Head | 电机功率 Motor Power | |||
| m3 | m3 | m3 | mm | mm | mm | m3/h | m | kW | kW | kg | |
| AX2B1.7 | 1.7 | 0.3 | 0.5 | 3780 | 1850 | 3322 | 6 | 50 | 3 | 381 | 1490 |
| AX2B2.2 | 2.2 | 0.4 | 0.6 | 3800 | 1890 | 3422 | 6 | 50 | 3 | 500 | 1590 |
| AX2B3.9 | 3.9 | 1 | 0.9 | 4450 | 2020 | 3670 | 6 | 50 | 3 | 830 | 2040 |
| AX2B4.6 | 4.6 | 1.3 | 1 | 4480 | 2370 | 4784 | 6 | 50 | 3 | 1002 | 2800 |
| AX2B6.5 | 6.5 | 2.1 | 1.2 | 4530 | 2510 | 5036 | 6 | 50 | 3 | 1394 | 3260 |
| AX4B8.6 | 8.6 | 3 | 1.7 | 4580 | 2600 | 5290 | 6 | 50 | 3 | 1625 | 4575 |
| AX4B12 | 12 | 4.4 | 2.2 | 5030 | 2880 | 4828 | 6 | 50 | 3 | 2390 | 6171 |
| AX4B15 | 15 | 5.8 | 2.4 | 5130 | 3090 | 5028 | 6 | 50 | 3 | 3054 | 6785 |
| AX4B18 | 18.5 | 6.9 | 4.3 | 5230 | 3290 | 5242 | 20 | 50 | 6.5 | 3484 | 8410 |
| AX4B22 | 22.3 | 8.1 | 5.2 | 6230 | 3290 | 5222 | 20 | 50 | 6.5 | 4397 | 9620 |
