Second Ammonia Receiver

Brand SMARTCOLD
Product origin DALIAN, CHINA
Delivery time 45 DAYS
Supply capacity 1 SET PER WEEK

Second Ammonia Receiver Volume：0.08-7.6 m3

Second Ammonia Receiver Features

* To separator liquid ammonia from gas sourced from evaporator, and to avoid liquid hamper caused by liquid ammonia entering into compressor. Meanwhile, improve evaporator effective heat transfer area.

* Design Temp: 43℃ * Design Pressure: 1.6 Mpa

* Hydraulic Test: 2.0 MPa * Air Tight Test: 1.6 Mpa

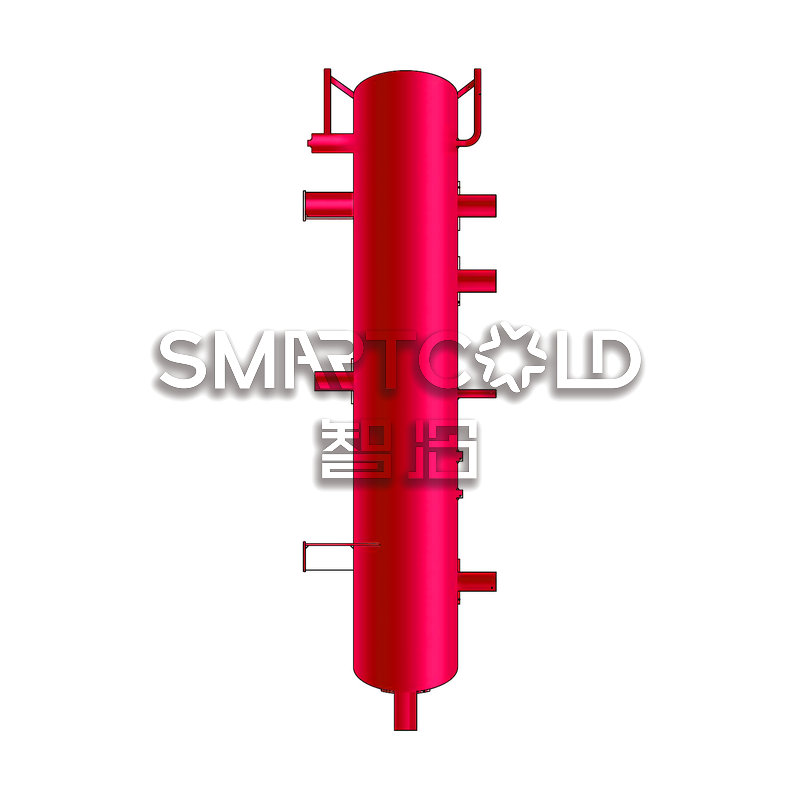

Second Ammonia Receiver

Second Ammonia Receiver Table

Model	Volume	Dimension		Weight
	Volume	Cylinder Dia.	Height	Weight
	m³	mm	mm	kg
AF-65	0.08	φ325	1428	111
AF-80	0.17	φ426	1630	172
AF-100	0.3	φ516	1814	212
AF-125	0.5	φ616	2114	347
AF-150	1.1	φ816	2541	542
AF-150A	1.7	φ1016	2611	706
AF-200	1.7	φ1016	2611	750
AF-200A	2.6	φ1220	2713	1051
AF-250	3.1	φ1220	3213	1290
AF-250A	4.4	φ1420	3313	1520
AF-300	4.4	φ1420	3313	1605
AF-300A	7.6	φ1828	3517	2724

Model	Volume	Dimension			Weight
	Volume	Cylinder Dia.	Length	Height	Weight
	m³	mm	mm	mm	kg
WAF-80	1.1	φ816	2322	1334	649
WAF-100	2.1	φ1016	2922	1538	913
WAF-125	3.2	φ1220	3023	1738	1318
WAF-150	5.2	φ1420	3623	1942	1780
WAF-200	6.9	φ1624	3727	2146	2530
