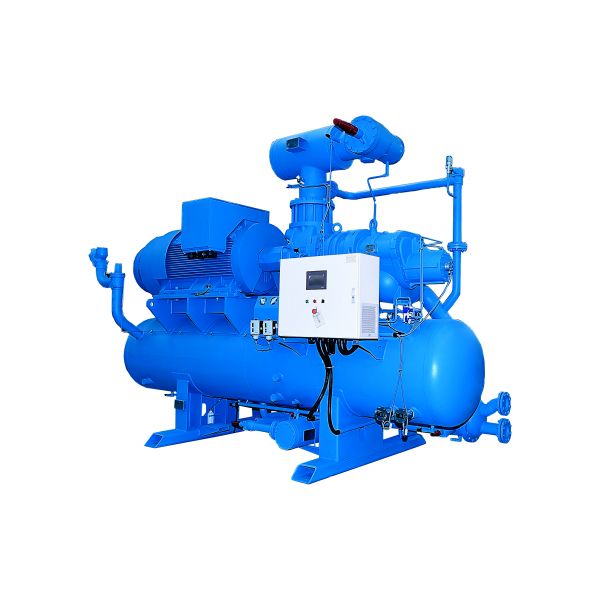

Marine Screw Compressor Unit
- SMARTCOLD
- DALIAN, CHINA
- 45 DAYS
- 1 SET PER WEEK
This series unit is widely applied in ship, has a greater demand cooling capacity, for food preservation, refrigerated, frozen, low temperature processing, marine air conditioning etc. Such as tuna fishing boat, a large squid fishing boats, large ocean seine, trawl processing vessels etc.
High-efficiency
*The 4th generation high-performance rotor profile with international advanced level. Being processed by advanced HOLYROYD exclusive rotor grinding machine to ensure the most accurate precision and high efficiency.
*The outside diameter of the male rotor and female rotor is equal, the circumferential velocity tends to the optimal value, the compressor efficiency improved significantly.
*Oil pump supplies oil continuously and make compression process close to no temp change. Lubrication oil forms a film on the seal line to reduce inner leakage and increase volume ratio.
*High-efficient oil separator and oil cooler ensure low oil consumption and high heat transfer efficiency.
High Reliability, Long Running Life, Good Vibration and Noise Reduction
*Rotor profile with feature of bilateral asymmetric are cycloidal, and with sealing ribs, to improve the reliability of operation of the compressor.
*Apply ductile iron replace steel. Its wear resistance, self-lubrication, sound insulation, and vibration damping are greatly improved.
*Apply imported mechanical seal, superior sealing performance.
*Apply high quality roller bearing take axial force from rotor, can run over 40000hours. Sliding bearing take radial force, can run over 80000hours.
*Compact unit, reasonable layout, low gravity center, reliable operating.
*All using steel valves.
*Reasonable center of gravity and anchor bolt location optimize unit vibration and noise.
Compact Piping, Stable Performance
*Add constant pressure valve in oil pipe, stability the oil supply pressure, improve the performance of the machine.
*Simple piping layout and easy to operate.
| Item | unit | Vertical oil separator of refrigerant unit | Horizontal oil separator of refrigerant unit | |||||
| Unit Model | CJJZKF212.5 | CJJZKF216 | CJJZKF220 | CJJZLG12.5F | CJJZLG16F | CJJZLG20F | ||
| Refrigerant | R22 | R22 | ||||||
| Condition | ℃ | -35/35 | -35/35 | |||||
| Ref. Cap | Without Economizer | kW | 57 | 121.6 | 259 | 57 | 121.6 | 259 |
With Economizer | kW | 75.2 | 154.7 | 329.6 | 75.2 | 154.7 | 329.6 | |
Evaporative Range | Without Economizer | ℃ | -40 ~+5 | -40 ~ +5 | ||||
| With Economizer | ℃ | -40 ~ -10 | -40 ~ -10 | |||||
Compressor | Theoretical Volume | m3/h | 276 | 580 | 1215 | 276 | 580 | 1215 |
| Capacity adjustable range | 10% ~ 100% | 10% ~ 100% | ||||||
Main Motor | Power | 3P,50Hz,380V | 3P,50Hz,380V | |||||
Rated revolution | r/min | 2960 | 2960 | |||||
Power | kW | 55 | 110 | 200 | 55 | 110 | 200 | |
Shaft Power | Without Economizer | kW | 36.5 | 76.8 | 161.4 | 36.5 | 76.8 | 161.4 |
With Economizer | kW | 39.7 | 86.1 | 180.9 | 39.7 | 86.1 | 180.9 | |
| Cooling water temp, in | ℃ | ≤33 | ≤33 | |||||
| Oil Cooler | Temp, in | ℃ | ≤33 | ≤33 | ||||
| Max. circulating-water | m3/h | 7 | 8 | 17 | 7 | 8 | 17 | |
| Unit Weight | Without Economizer | kg | 2900 | 3720 | 6640 | - | 2190 | 5160 |
| With Economizer | 3150 | 3960 | 6920 | - | 3650 | 5420 | ||
| Outline (LxWxH) | Without Economizer | mm | 3300x1550 x1895 | 4000x1700 x2540 | 2850x1280 x1900 | 3100x1385 x2125 | ||
| With Economizer | mm | 2930x1550 x1900 | 3500x1568 x1895 | 4000x1700 x2540 | 2850x1280 x1900 | 3100x1415 x2125 | ||
